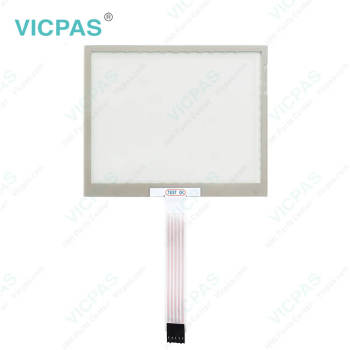

Higgstec T065S-5RA007N-0A11R0-080FH Touch Screen Panel

Higgstec T065S-5RA007N-0A11R0-080FH Touch Screen Panel
Higgstec T065S-5RA007N-0A11R0-080FH Touch Screen PanelHiggstec T065S-5RA007N-0A11R0-080FH Touch Screen PanelHiggstec T065S-5RA007N-0A11R0-080FH Touch Screen PanelHiggstec T065S-5RA007N-0A11R0-080FH Touch Screen PanelHiggstec T065S-5RA007N-0A11R0-080FH Touch Screen Panel
group name
Higgstec Touch Panel
Min Order
1 piece
brand name
VICPAS
model
T065S-5RA007N-0A11R0-080FH
Nearest port for product export
Guangzhou, Shenzhen, Hongkong, TaiWan
Delivery clauses under the trade mode
FOB, CFR, EXW, CPT, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
Export mode
Export through agents
update time
Sat, 02 Nov 2024 03:29:37 GMT

Paramtents

  • Warranty 365 Days

  • Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

  • Touch points Single-touch

  • Place of Origin China

  • HMI touch glass touch digitizer glass

  • HMI panel glass touch screen monitor

  • Name T065S-5RA007N-0A11R0-080FH Touch Screen Panel

Packging & Delivery

  • Min Order1 piece

Briefing

T065S-5RA007N-0A11R0-080FH Touch Screen It is new ,meet bad environment,took 12months warranty.

Detailed

Higgstec T065S-5RA007N-0A11R0-080FH Touch Screen Panel


T065S-5RA007N-0A11R0-080FH Touchscreen
T065S-5RA007N-0A11R0-080FH touch assemble
T065S-5RA007N-0A11R0-080FH touch front
T065S-5RA007N-0A11R0-080FH touch interface
T065S-5RA007N-0A11R0-080FH touch cover


True Flat Resistive Touch Solution

Our True Flat Resistive touch solution combines the simplicity, versatility and durability of our 5-wire resistive technology with an attrac- tive zero-bezel desian.

The fush surface is easier to clean and there will be no dust or dirt buildup or water leakage into the bezel, making it an excellent solution for sterile or dust free environments such as medical dinics, scientific laboratories, restaurants or food processing areas. What's more, you now also incorporate features such as logos or hotkey buttons on the cover design".

Higgstec also uses a special high temperature production process for its resistive screens to fuse the silver sensor circuit onto the glass, preventing it from peeling off during extreme temperature or humidity variations, ensuring greater longevity and durability in harsh operating environments

A front cover shield (glass, fiberglass, PMMA or other material) can also be added to the front of the resistive panel for anti-abrasion and chemical resistance protection.


FAQ:

Question:Attention of Mounting Condition

Answer:
(1) The gasket support of touch panel must allocate outside of Viewable Area. Reserve enough clearance between panel surface and enclosure for normal panel operation.
To avoid pressing error, please retain enough space between surface panel and Bezel.

(2) Bezel opening must not touch Viewable Area, Bezel opening must be designed between Viewable Area and Active Area.

(3) We recommend elastic material support.

(4) Due to the conductive characteristic of the panel backside, prevent metal contact after mounting.

(5) Do not use adhesive to bond top surface (ITO Film) of touch panel with enclosure.

(6) Proper grounding of controller at all times assure normal operation.

(7) During assembly. Please take into consideration the variance in the different module designs, whether it would cause physical, cosmetic or functional damages to the touch panel, when completing the assembly.

(8) After installation,please perform 4 point and 25-point calibration.
